Industrial Partitions

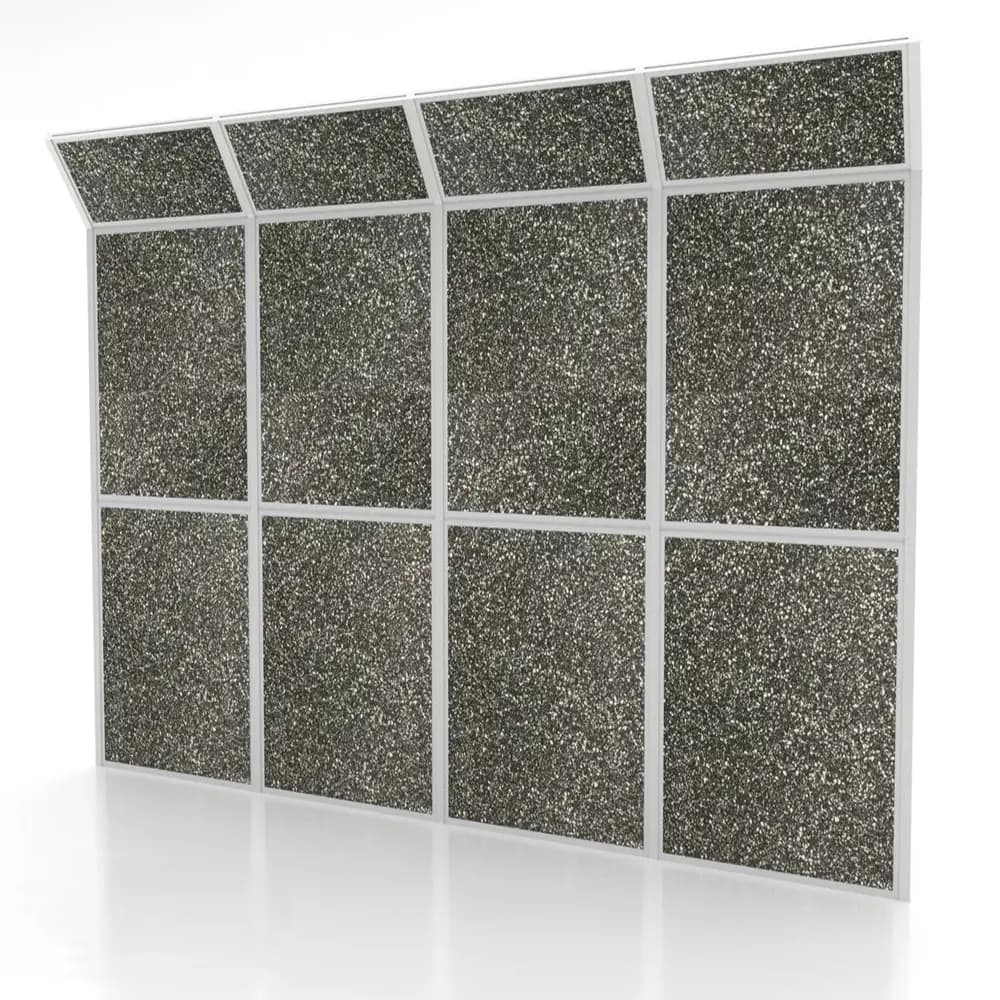

Ścianki Q
Wolnostojące ścianki akustyczne do wyciszenia hali produkcyjnej i wydzielania stref.
120–200 cm
Wysokość
50 mm
Grubość
do 13 dB
Redukcja
Wycena
Indywidualna
Na podstawie projektu

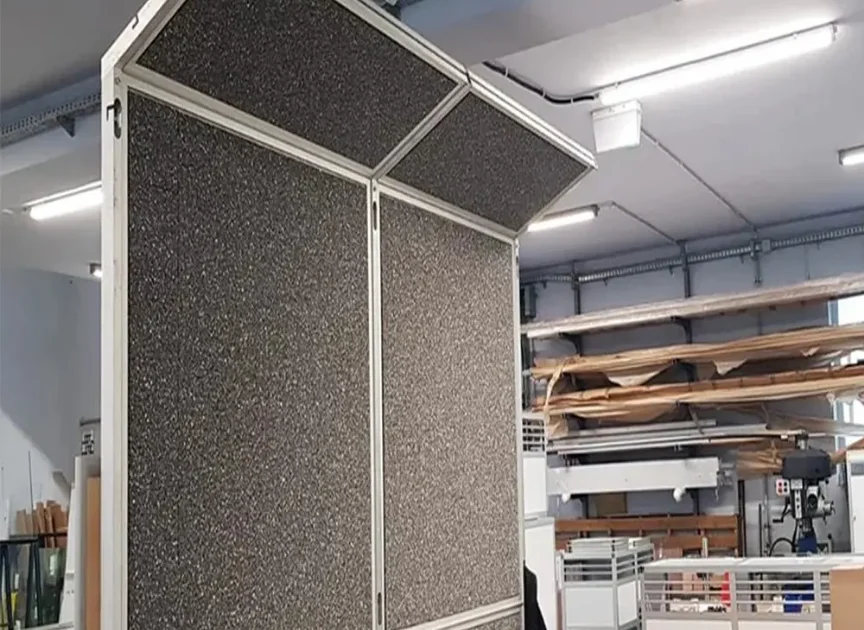

Ścianki Q
Czytaj opis
Professional soundproofing at the heart of production

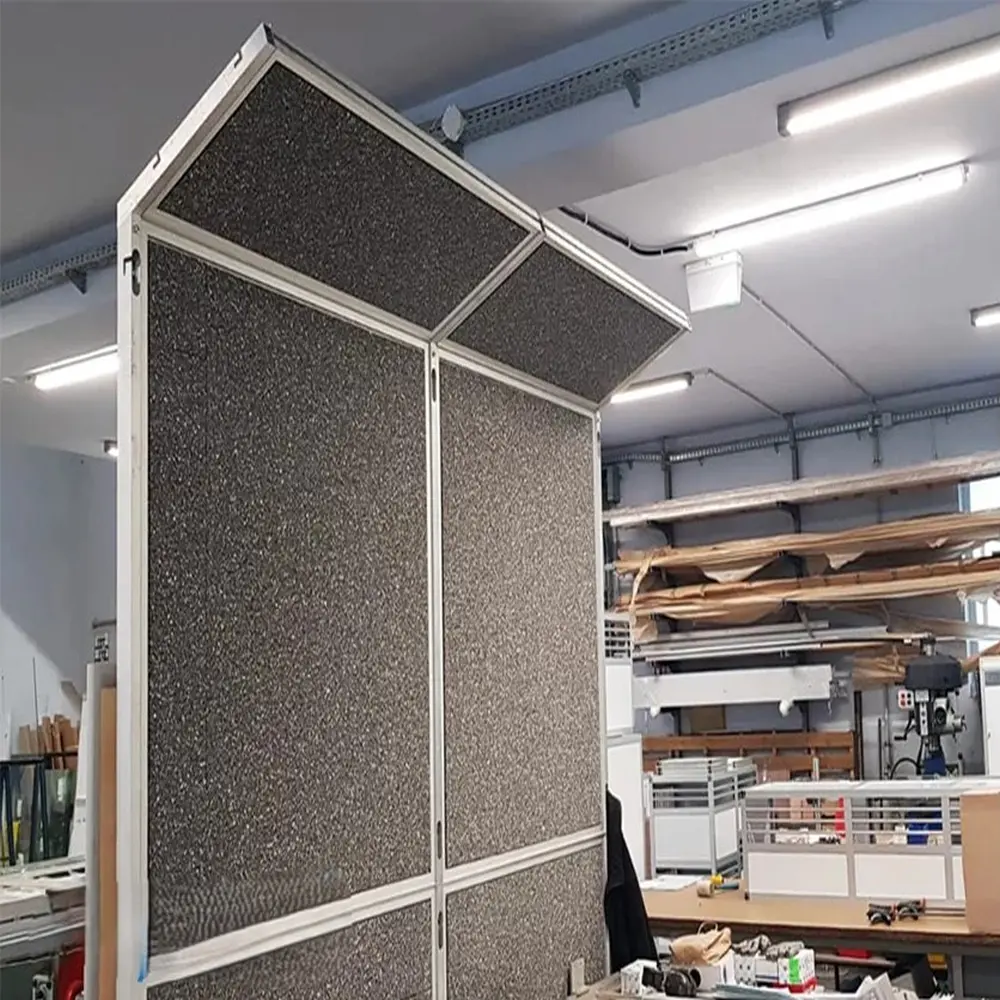

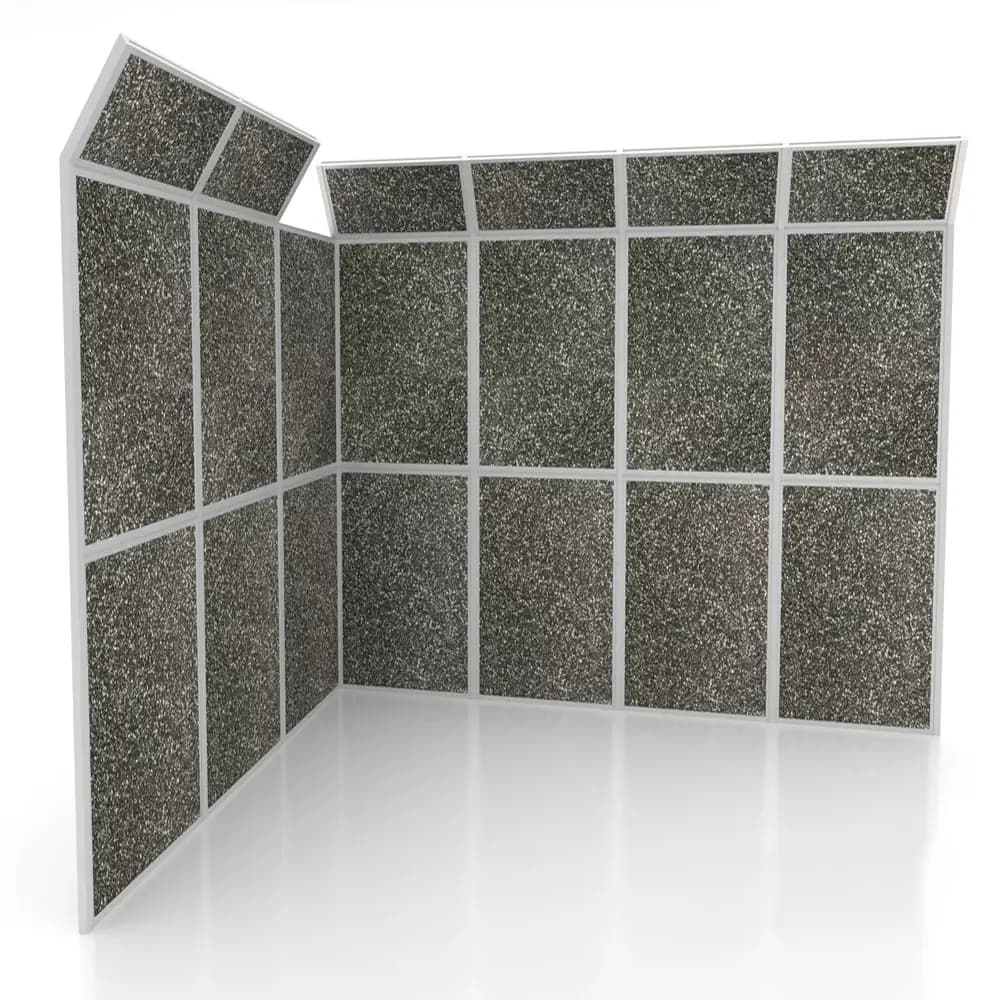

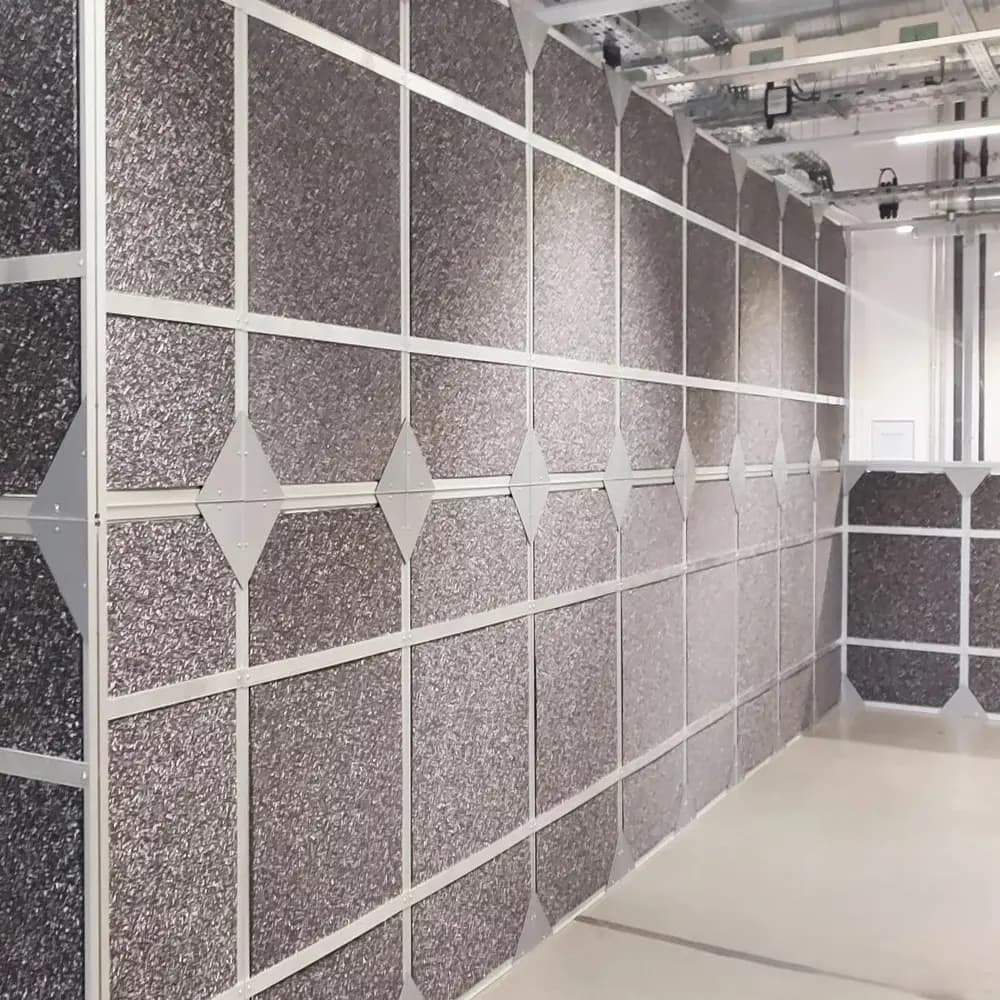

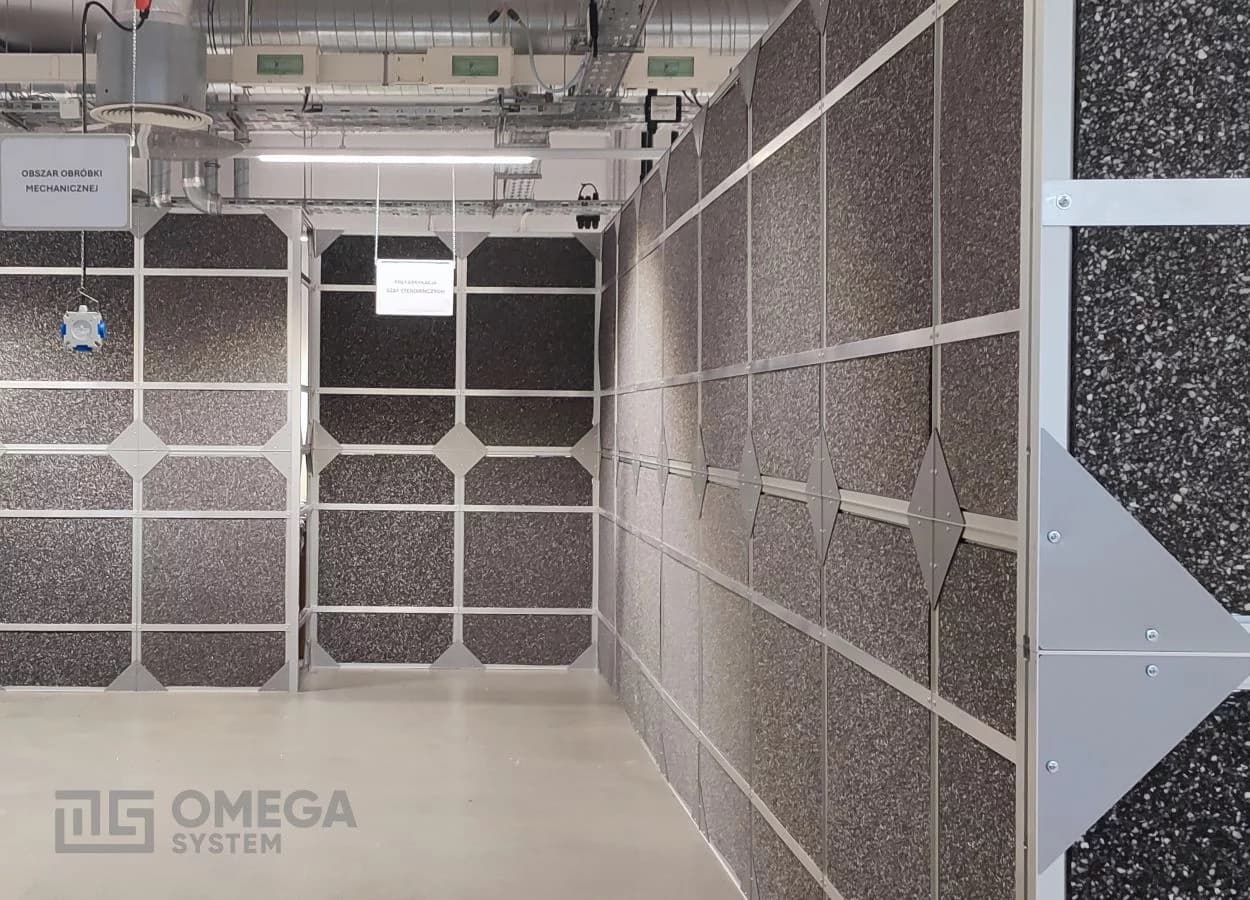

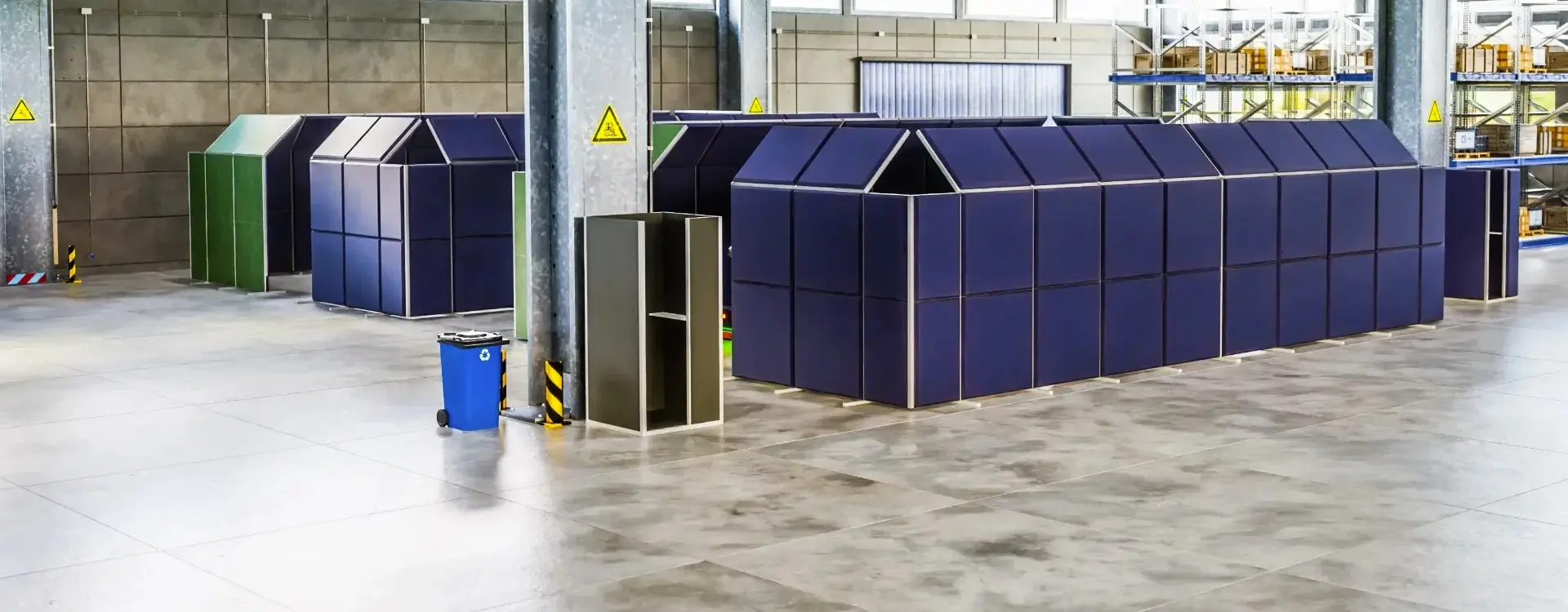

Machine noise in production halls is not just a matter of discomfort — it is primarily a matter of safety and efficiency. System Q enclosures were designed to create quiet zones (Low-Stimulus Zones) directly alongside production lines. Thanks to the self-supporting construction based on rigid profiles, these panels form an "armoured" barrier that effectively cuts off the direct acoustic wave.
AKU-PR foam technology: a sound trap
The heart of System Q is an inner layer made from AKU-PR foam. At 50 mm thickness it provides acoustic insulation of around 13 dB, which is enough to turn the oppressive roar of machinery into a bearable background hum. Professional-series foams not only insulate but also absorb and scatter sound waves, preventing echo build-up in tall halls. The AKU-PR version is dedicated specifically to technical and production environments, where maximum effectiveness combined with hygiene certification is essential.
Colours that organise space

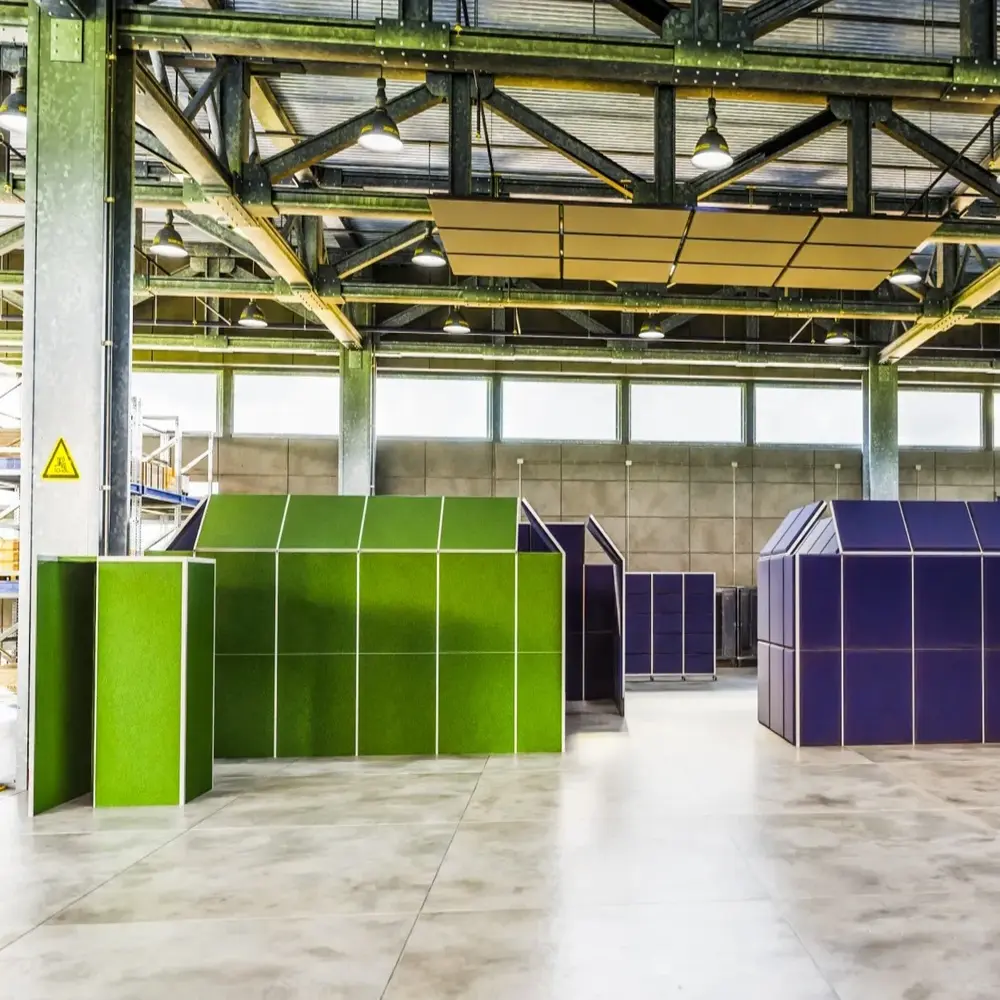

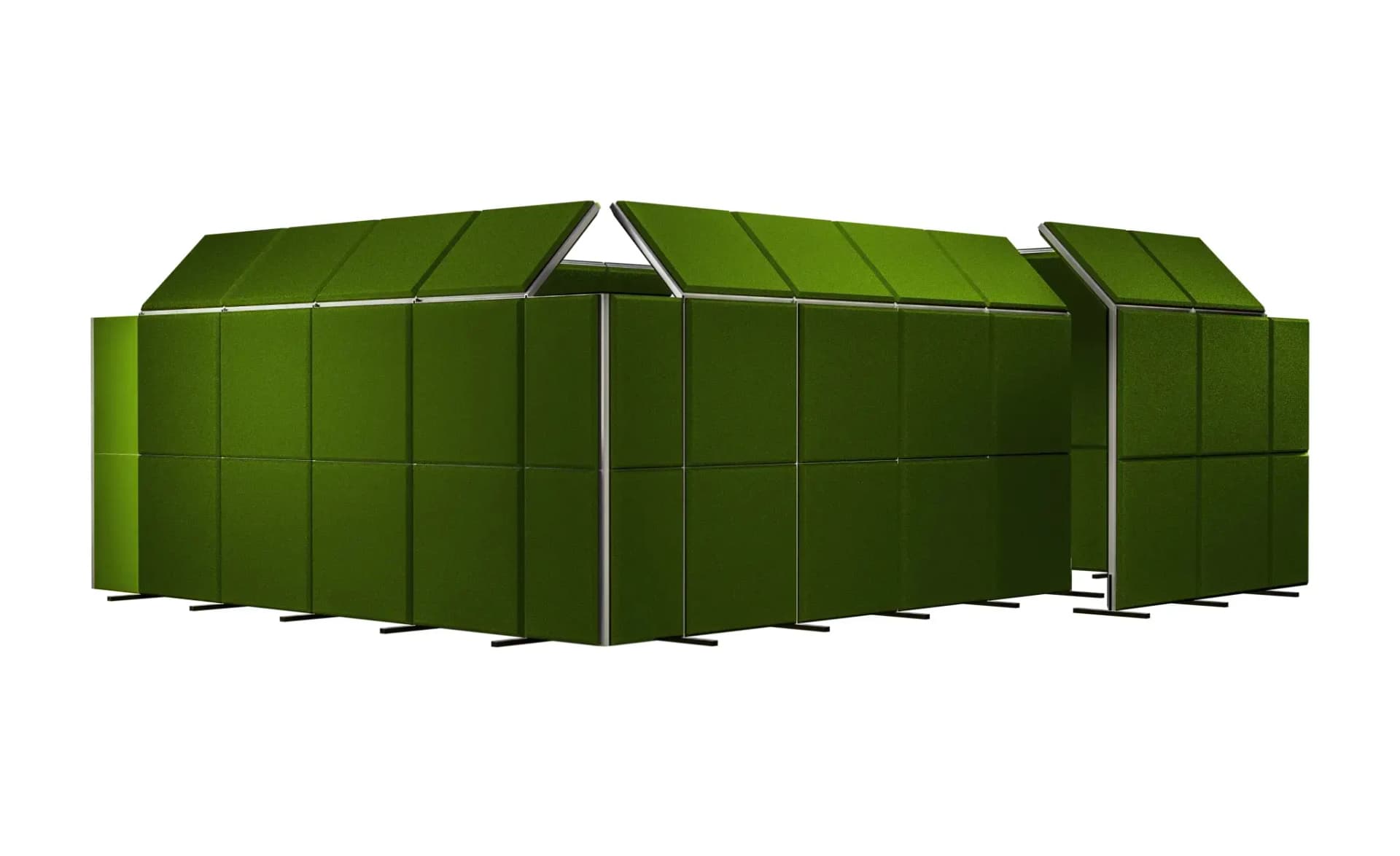

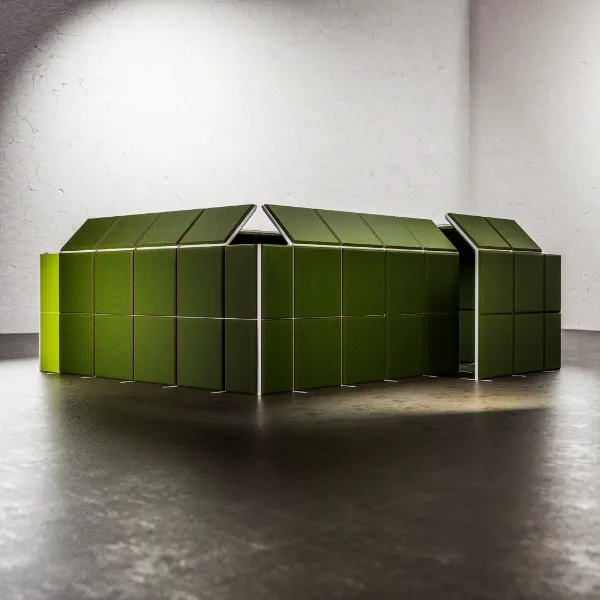

In industry, functionality must go hand-in-hand with clear spatial zoning. System Q offers 7 standard foam colours from the Professional series, enabling colour-coded demarcation of safe walkways or supervision zones. The wear-resistant materials are easy to keep clean. Full-panel screens shield infrastructure from unauthorised viewing.
Thanks to the combination of industrial robustness and high sound-damping performance, System Q is an alternative to office-grade solutions while retaining full mobility and the lightness of a self-supporting structure.
Wykończenia: pianka AKU-PR (7 kolorów) · aluminiowy stelaż
Atesty: Reakcja na ogień · Atest higieniczny
Wzornik tkanin i wykończeńKolory tapicerki, ram i szybNajczęstsze pytania
Do Q panels completely block machine noise?
No, and it is worth bearing this in mind. Q enclosures are designed to reduce noise nuisance by approximately 13 dB. They cut off the direct acoustic wave, which dramatically improves comfort and communication in the designated zone, but they do not create a vacuum sound barrier.
Does installing industrial panels require specialist qualifications?
Absolutely not. System Q is installed "dry" — no dust, no welding, no floor drilling (unless the client requires anchoring for additional rigidity). A soundproofed zone can be erected in just a few hours.
How does System Q respond to fire?
The foams used in Q enclosures hold a certified fire reaction class, which is a mandatory safety requirement in any production facility.
Can System Q be reconfigured after installation?
Yes — that is one of its greatest advantages. Modules are freestanding and can be repositioned without stopping production. When the production line is reorganised, the acoustic enclosure can be adapted without additional cost.

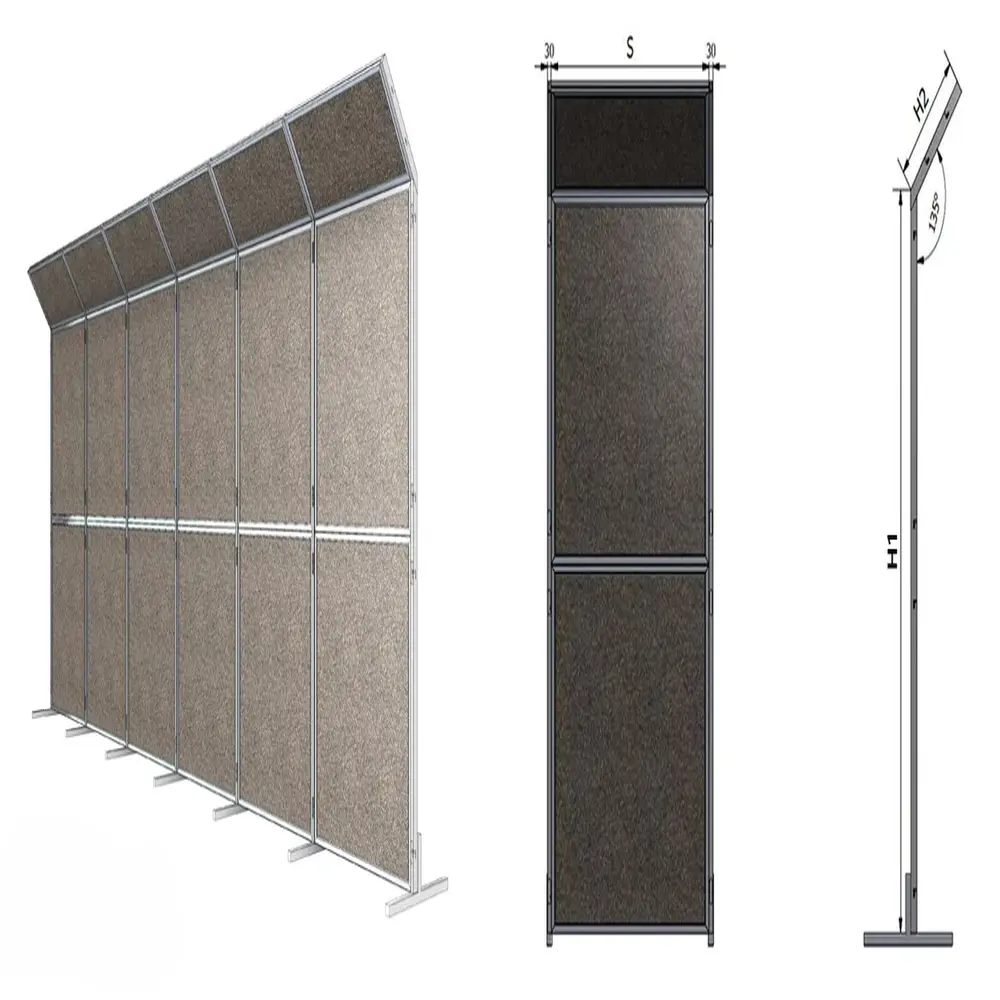

Standard dimensions
Custom partition dimensions available.
Available widths
Available heights
System thickness
50 mmDescribe your needs in the quote form.
TL;DR
- Acoustics: Sound insulation of 13 dB thanks to specialist AKU-PR foam (50 mm).
- Safety: Materials with a high fire reaction class, certified for industrial use.
- Design: 7 standard foam colours — colour-coded zone separation on the factory floor.
- Installation: Reconfigurable system — ready-made modules that can be repositioned without halting production.
Professional soundproofing at the heart of production
Machine noise in production halls is not just a matter of discomfort — it is primarily a matter of safety and efficiency. System Q enclosures were designed to create quiet zones (Low-Stimulus Zones) directly alongside production lines. Thanks to the self-supporting construction based on rigid profiles, these panels form an "armoured" barrier that effectively cuts off the direct acoustic wave.
AKU-PR foam technology: a sound trap
The heart of System Q is an inner layer made from AKU-PR foam. At 50 mm thickness it provides acoustic insulation of around 13 dB, which is enough to turn the oppressive roar of machinery into a bearable background hum. Professional-series foams not only insulate but also absorb and scatter sound waves, preventing echo build-up in tall halls. The AKU-PR version is dedicated specifically to technical and production environments, where maximum effectiveness combined with hygiene certification is essential.
Colours that organise space
In industry, functionality must go hand-in-hand with clear spatial zoning. System Q offers 7 standard foam colours from the Professional series, enabling colour-coded demarcation of safe walkways or supervision zones. The wear-resistant materials are easy to keep clean. Full-panel screens shield infrastructure from unauthorised viewing.
Thanks to the combination of industrial robustness and high sound-damping performance, System Q is an alternative to office-grade solutions while retaining full mobility and the lightness of a self-supporting structure.
Parameters
Colours
Colours
Swatches →
Use cases
When to choose Q panels?

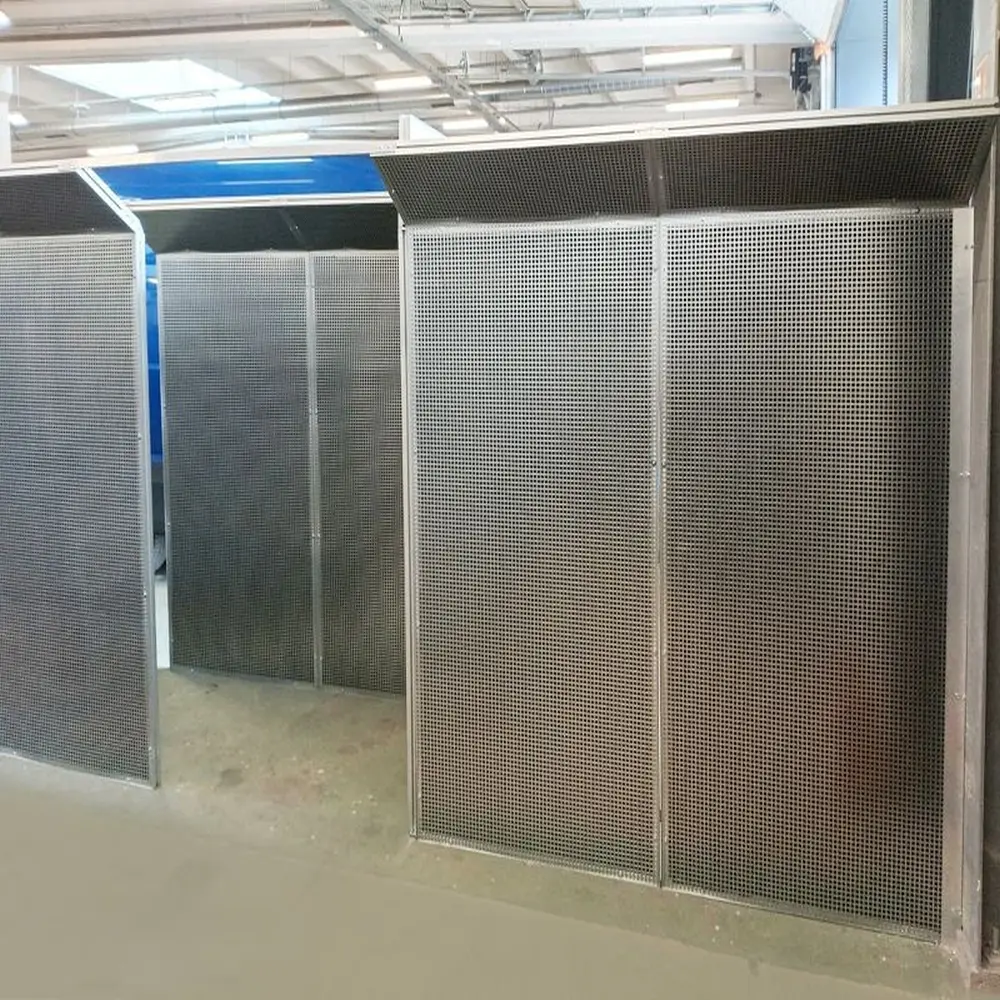

The Q system works where standard office partitions cannot withstand industrial conditions and certified safety parameters are required.
- 01
Certified fire protection
When health and safety procedures require materials with a specified fire reaction class. AKU-PR foam meets strict fire safety standards — essential close to machinery.
- 02

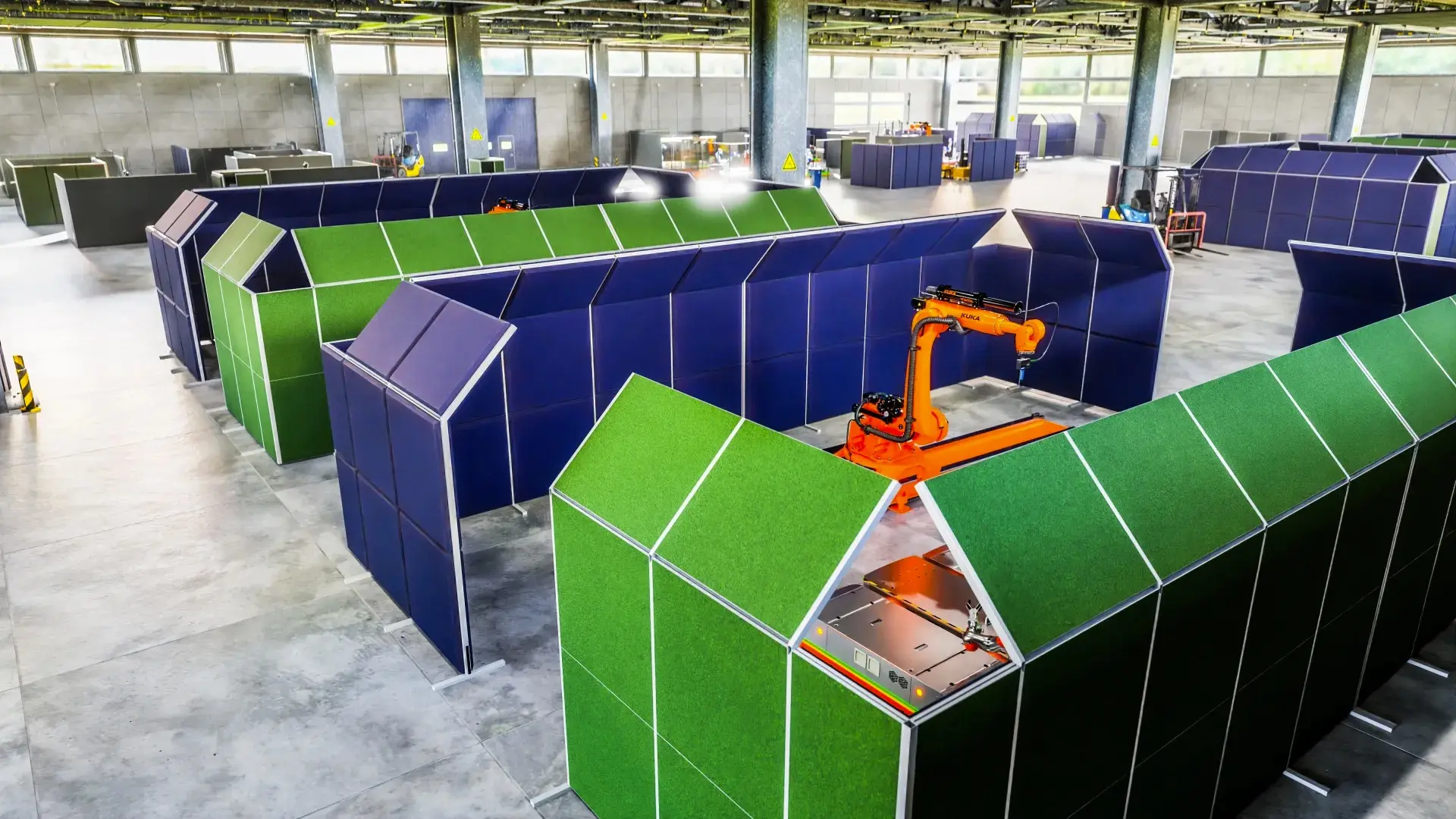

Quiet zone at the production line
The Q system provides 13 dB of acoustic insulation at 50 mm thickness. It cuts the direct sound wave from technical equipment, dramatically improving comfort and work safety.
- 03
Reconfigurable hall soundproofing
When the production line changes frequently, Q modules can be repositioned without dust or downtime. The freestanding system requires no floor drilling and adapts to new layouts in hours.
Do Q panels completely block machine noise?
No, and it is worth bearing this in mind. Q enclosures are designed to reduce noise nuisance by approximately 13 dB. They cut off the direct acoustic wave, which dramatically improves comfort and communication in the designated zone, but they do not create a vacuum sound barrier.
Does installing industrial panels require specialist qualifications?
Absolutely not. System Q is installed "dry" — no dust, no welding, no floor drilling (unless the client requires anchoring for additional rigidity). A soundproofed zone can be erected in just a few hours.
How does System Q respond to fire?
The foams used in Q enclosures hold a certified fire reaction class, which is a mandatory safety requirement in any production facility.
Can System Q be reconfigured after installation?
Yes — that is one of its greatest advantages. Modules are freestanding and can be repositioned without stopping production. When the production line is reorganised, the acoustic enclosure can be adapted without additional cost.
Specification
Technical Data
- Izolacja akustyczna
- 13 dB
- Grubość panelu
- 50 mm
- Wypełnienie
- Pianka AKU-PR (seria Professional)
- Wykończenie
- 7 kolorów podstawowych
- Klasa reakcji na ogień
- MVSS302, Bs1 d0
- Standardowe szerokości
- 60, 80, 100, 120, 160 cm
- Standardowe wysokości
- 120, 160, 200 cm (możliwość zamówienia do 300×300 cm)
- Konstrukcja
- Samonośny stelaż aluminiowy, system modułowy
- Montaż
- Wolnostojący, bez kotwienia w posadzce
